- HOME > MSI > Storage Server > msi 3.5 인치 스토리지 서버 6th intel Xeon 베어본 CS280-S3065
| Form Factor | 2U |
| Dimensions | 17.2"W(438mm) × 3.4"H(87mm) × 34.6"D(880mm) |
| Processor | Single Intel® Xeon® 6700E-series, 6500P-series and 6700P-series processor, TDP up to 350W |
| Socket | (1) Intel LGA 4710 (Socket E2) |
| Chipset | N/A |
| Memory | (8) DDR5 DIMM Slots, 8 channels(1DPC), RDIMM/RIMM-3DS/MCRDIMM - Max. Frequency: RDIMM: 6400MT/s MCRDIMM: 8000MT/s - Max. Capacity per DIMM: 256GB(RDIMM), 64GB(MCRDIMM) *MCRDIMMs are only supported with Intel® Xeon® 6 P-core series processors |

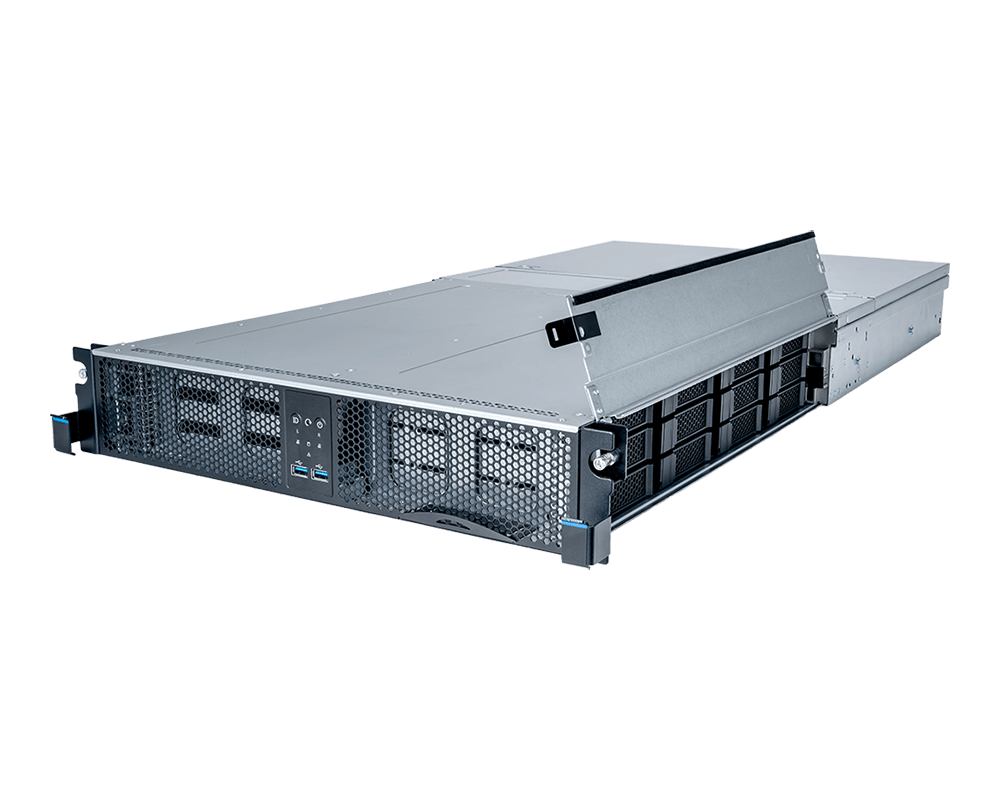

| Drive Bays | (24) Front hot-swap 3.5"/2.5" SATA3.0/SAS12G drive bays* (2) Rear hot-swap 2.5" U.2 PCIe5.0 x4 NVMe drive bays *RAID/HBA card is required for SATA/SAS devices support |
| Internal Storage | (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports |
| Expansion Slots | (2) FHHL PCIe 5.0 x16 slots (1) Mechanical support for Host Adapter (no PCIe signal) |
| Networking | (2) 25G SFP28 Ethernet ports (Intel® E810XXVAM2, NCSI supported) (2) 1000Base-T Ethernet ports (Intel® i210AT, NCSI supported) (1) PCIe 5.0 x16 OCP3.0 slot (NCSI supported) *Only one NCSI port is functional at a time. |
| RAID | NVMe RAID 0/1/5/10 support (Intel® VROC RAID key required) |

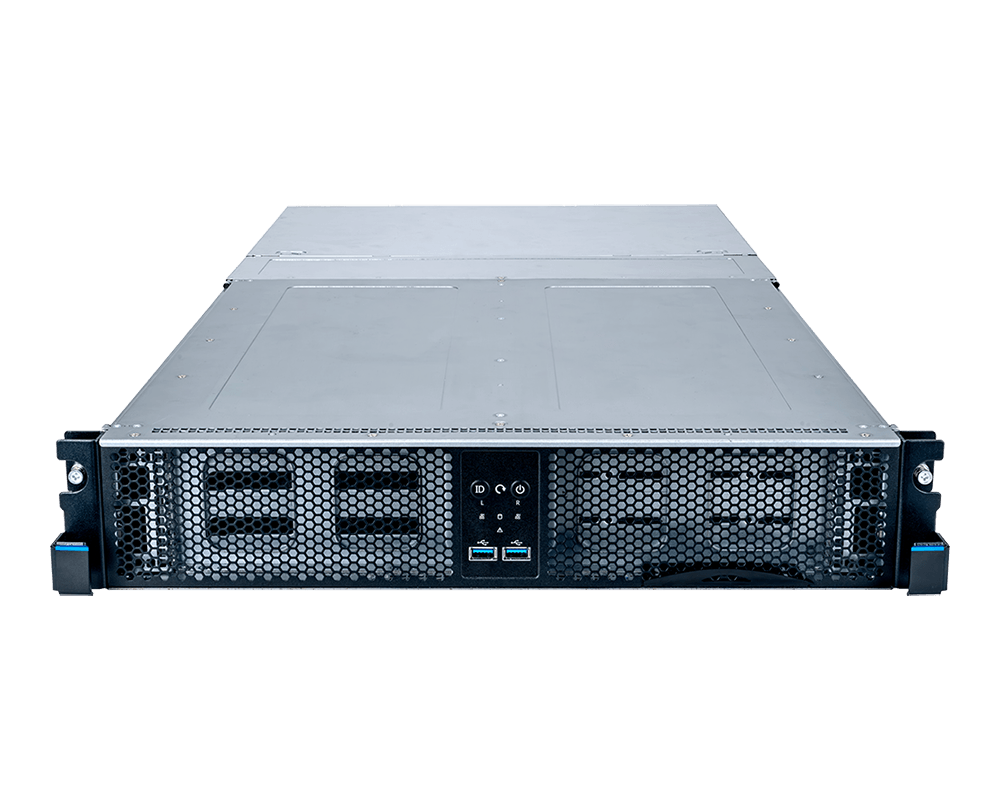

| Front I/O | (2) USB 3.2 Gen 1 Type-A ports (1) System Power LED button (1) UID LED button (1) Reset button (5) Status LEDs: Fault/LAN/HDD/Left HDD Failure/Right HDD Failure |

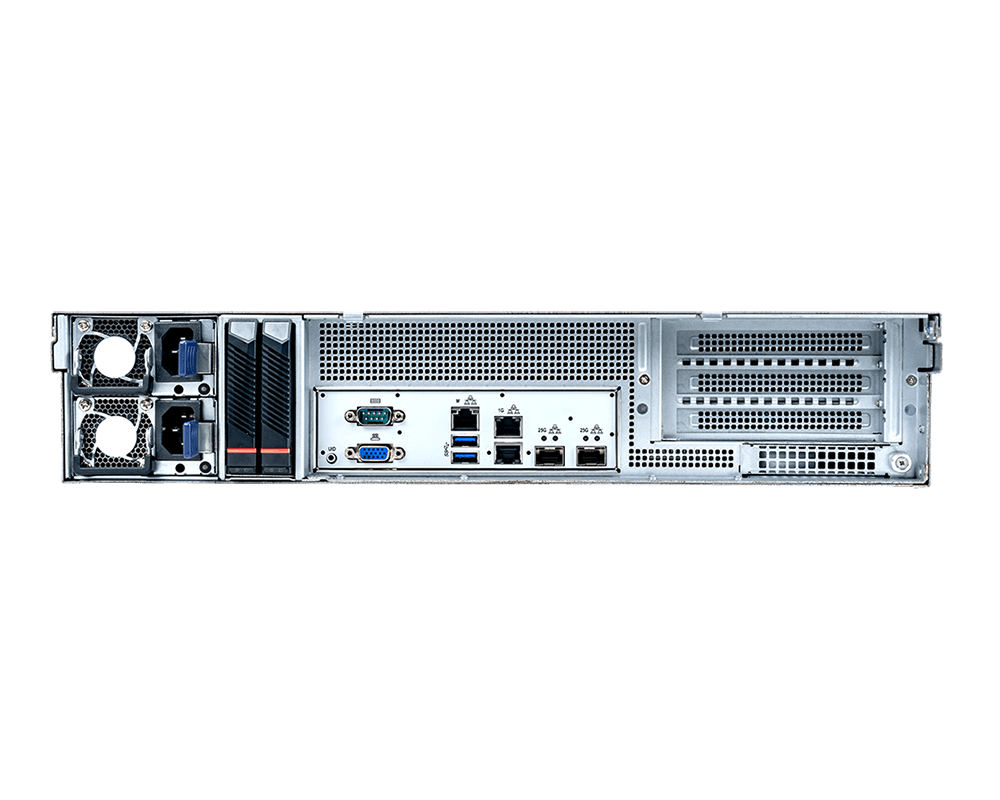

| Rear I/O | (2) 25G SFP28 Ethernet ports (2) 1000Base-T Ethernet ports (1) 1000Base-T Dedicated Server Management port (2) USB 3.2 Gen 1 Type-A ports (1) VGA D-Sub port (1) COM RJ45 port (1) UID LED button |
| Security | Chassis intrusion TPM2.0 module supported (optional) |
| Server Management | (1) 1000Base-T Dedicated Server Management port ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API Single BIOS and single BMC |
| Power Supply | (1+1) Redundant 1300W CRPS 80 PLUS Titanium Dimension (WxHxL): 73.5 x 40 x 185 mm Rating: AC Input: 100-127Vac, 12A, 47-63Hz Output: Max 1000W, DC +12V/83.33A, +12Vsb/3A AC Input: 200-240Vac, 8A, 47-63Hz Output: Max 1300W, DC +12V/108.3A, +12Vsb/3A *C13 power cords are required and will be offered as optional accessories. |
| Cooling | (1) EVAC air cooling module for max. 350W CPU (6) 6038 Hot-swap system fans |
| Certification | CE, FCC (Class A) |
| Package Contents | (1) Barebone (1) Quick guide (1) Slide rail kit (1) CPU cooler (1) CPU carrier E2A (1) CPU carrier E2B (2) CRPS PSUs(inside system) |
| Optional parts | TPM2.0 module: TPM20-IRS Power cords: -C13 power cord 125V/10A(US, NEMA 5-15P): K33-3001002-I45 -C13 power cord 125V/15A(US, NEMA 5-15P): K33-3001359-I45 -C13 power cord 250V/15A(US, NEMA 6-15P): K33-3001365-I45 -C13 power cord 250V/16A(EU): K33-3001005-I45 -C13 power cord 250V/10A(CN): K33-3001029-I45 -C13 power cord 125V/13A(JP): K33-3001346-I45 |
